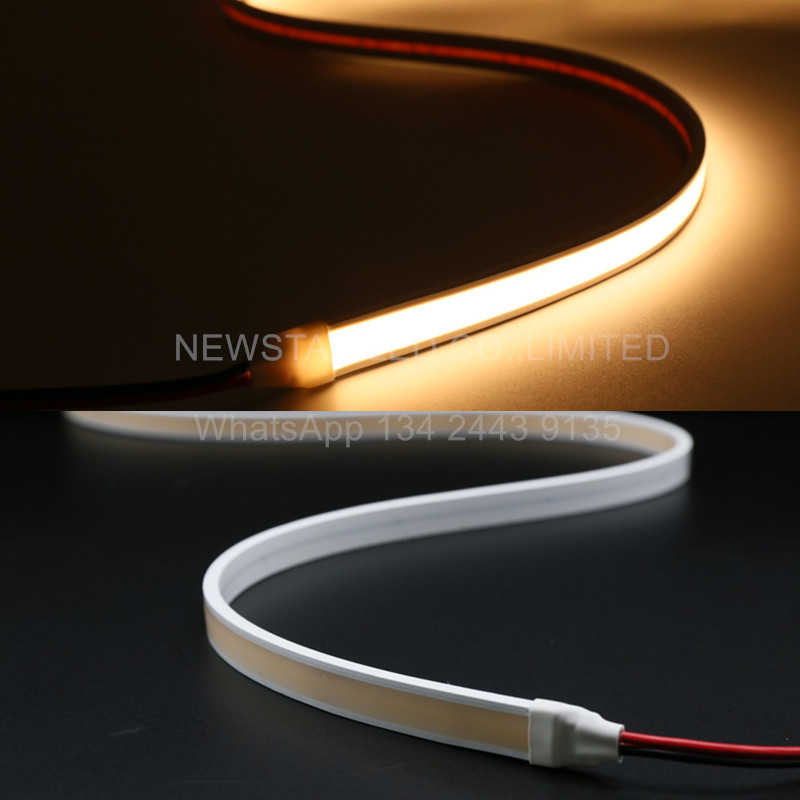

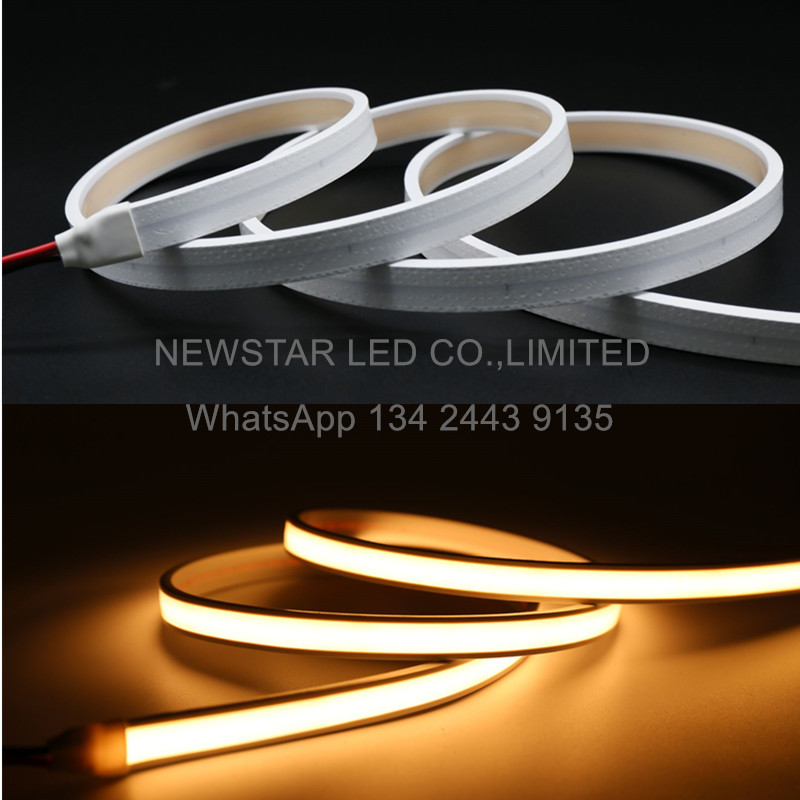

LED Neon Flex Strip COB LED Dot-free Mini size 10*3.5mm Neon Strips

COB LED Neon Flex Strip, Dot-free, Mini size 10*3.5mm, Super quality 5 years warranty
Description Package Information Inquiry

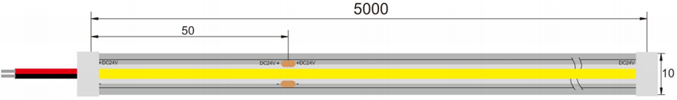

LED COB Neon strip, mini size 10*3.5, cuttable and flexible


Model

NSS-COB-480WN

Light Source

COB 480leds/M

Power

9w/M

Lumen(/w)

80-90lm/w

Lumen(/m)

700-800lm/m

Input   Voltage(V)

DC24V

PCB   Color

White, 8mm

Certification

CE & RoHS

Beam   Angle

120°

CRI   (Ra)

>90Ra

IP   Grade

IP68

Color

R/G/B /W 2700-6000K

Warranty

5 years

Working   Temp.

-25~+45

Storage   Temp.

-30~+80

Package   Length

5m/roll

Package   Info.

300m/ctn, L680*W280*H290, 18.5kg/ctn

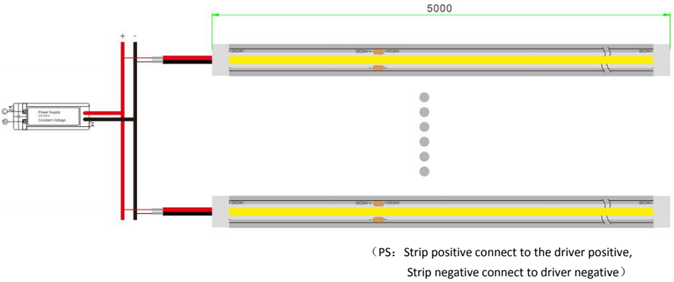

COB Neon Strip Connection


5m per roll
