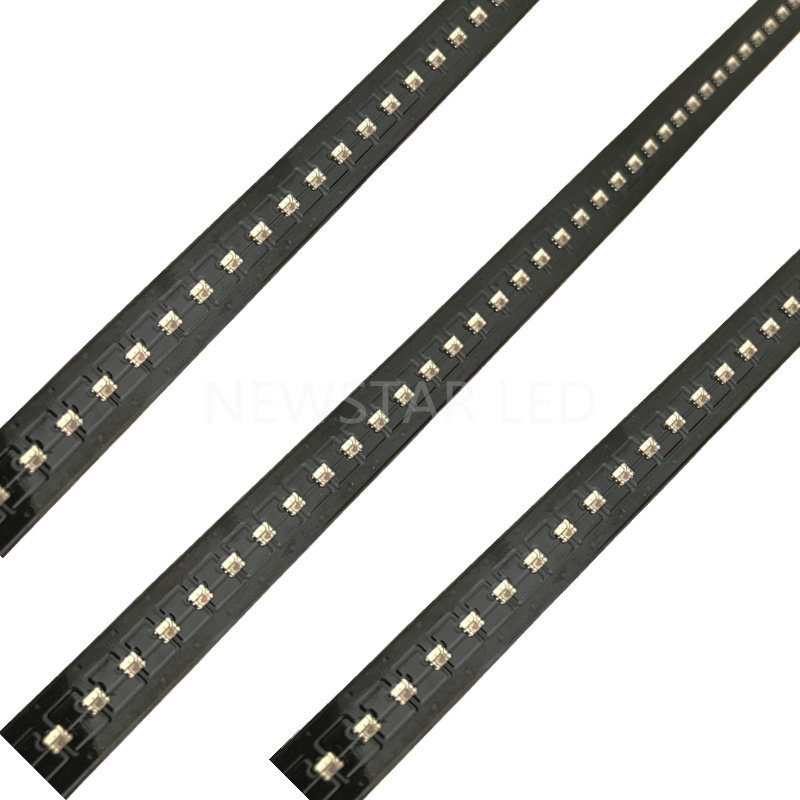

HD107S 2020 Flexible LED Strip 200leds 10mm PCB 2020 Pixel Strip

● LED internal integrated high quality external control line serial cascade constant current IC; 5V application; default on electric lights; ● The two-wire synchronous control. ●The three RGB output control, 8Bit (256) color; 5Bit (32) to adjust the brightness; ● The three constant current drive, self detection function specific signal ● The maximum frequency of 40MHZ serial data input ● The double data transmission, built-in support uninterrupted oscillation PWM (28Khz) output, can maintain a static image.
Description Package Information Inquiry

HD107S 2020 Flexible LED Strip used an embedded control type LED light source integrating control circuit and light-emitting circuit. It's 200leds per meter with flexible 10mm PCB. Products containing a signal decoding module, data buffer, a built-in constant current circuit and RC oscillator; CMOS, low voltage, low power consumption; 256 level grayscale PWM adjustment and 32 brightness adjustment; use the double output, Data and synchronization of the CLK signal, connected in series each wafer output action synchronization.

HD107S 2020 LED Advantage

1. Comparing to the hot APA102 addressable led strip, HD107S comes with quicker transmission speed 40MHz and PMW refresh rate >27KHz (APA102 with transmission speed 20MHZ and PMW 20KHz ).

2. 2020smd is available to make higher density strip or screen product to achieve better lighting effect.

3. HD107S 2020 led with much lower voltage drop, 5m can be powered by one end without color difference.

4. HD107S 2020 led is lower power comsumption, which is more energy saving than APA102/SK9822

5. HD107S 2020 led with built-in sleep function, no work no electric consumption, very good for battery-powered application (only HD107s.)

6. 2-4ounce PCB to ensure the best heat-dissipation and long lifespan

7. SPI protocol available with SD, DMX and Artnet so on.

8. High quality with 3 years warranty


HD107S 2020 LED Datasheet Downloading
